Ford 6.7 Powerstroke Turbo
The 6.7L Powerstroke Turbo Diesel engine, introduced by Ford in 2011 to replace the 6.4L Power Stroke, is widely recognized for its exceptional performance and cutting-edge engineering. A critical component of this engine’s turbocharging system includes the turbo gasket, turbo pedestal gasket, and turbo exhaust pipe gasket. These gaskets ensure secure seals, preventing exhaust leaks, maintaining optimal pressure, and safeguarding the turbo system.

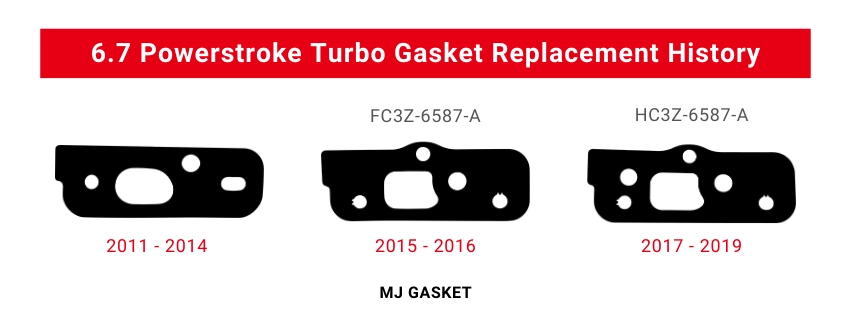

6.7 Powerstroke Turbo Gasket Replacement History – HC3Z-6587-A
The 6.7L Power Stroke Turbo Diesel engine has undergone multiple enhancements over the years to improve performance, reliability, and efficiency. Here’s an overview of its evolution by model year:
- 2011–2012: Initial Release
- 2013–2014: Performance Enhancement
- 2015–2016: Further Improvements
- 2017–2019: Significant Upgrades
- 2020–2022: Modernization and Peak Performance
Along with these engine advancements, the turbocharger system has also seen improvements, including changes to the turbocharger design and the turbo gaskets used. Below are the part numbers for the turbo gaskets based on model years:
- 2011–2014: n/a
- 2015–2016: FC3Z-6587-A
- 2017–2019: HC3Z-6587-A
The Materials for 6.7 Powerstroke Turbo Gasket
The turbocharger is a critical component in the performance of diesel-powered pickup trucks. The gaskets used in the turbocharging system are essential for preventing exhaust leaks, ensuring optimal pressure, and maintaining the overall efficiency and reliability of the engine.
In the following section, I will discuss the gasket materials used in each turbo gasket. By utilizing high-quality materials, you can be assured that the gaskets will provide reliable performance and durability, without the concern of substandard manufacturing or compromised material quality.
6.7 Powerstroke Turbo Gasket – HC3Z-6587-A
The HC3Z-6587-A turbo gasket plays an essential role in the 2017–2019 6.7 Powerstroke Turbo system, forming a tight and secure seal between the turbocharger and pedestal. Made with rubber-coated metal and embossed reinforcements, HC3Z-6587-A enhances durability and sealing strength, preventing exhaust leaks that could impact turbo efficiency.
Built to withstand high temperatures and pressure, HC3Z-6587-A ensures stable performance in Ford Super Duty models like the F-250, F-350, F-450, and F-550.
6.7 Powerstroke Turbo Pedestal Gasket – BC3Z-6587-A
The BC3Z-6587-A turbo pedestal gasket is for 2011–2021 6.7 Powerstroke Turbo engines, ensuring a secure and durable seal between the turbo pedestal and engine block. Made from stainless steel with an advanced-coated lining, the BC3Z-6587-A gasket withstands intense heat and pressure, helping maintain consistent boost levels in Ford F-250, F-350, F-450, and F-550 trucks equipped with the 6.7 Powerstroke Turbo.
The BC3Z-6587-A turbo pedestal gasket offers reliability and durability under extreme conditions, making it an essential component for 6.7 Powerstroke performance.
6.7 Powerstroke Turbo Exhaust Pipe Gasket – BC3Z-6N640-A
The BC3Z-6N640-A exhaust pipe gasket is a key sealing component in the 6.7 Powerstroke Turbo system, ensuring a leak-free connection between the exhaust pipe flange and manifold.
Made from sandwich-type material, the BC3Z-6N640-A gasket provides durability and heat resistance, making it important for 2011–2024 Ford Super Duty models, including the F-250, F-350, F-450, and F-550, helping to keep the exhaust system performing at its best.
6.7 Powerstroke Turbo Gasket Kit
In addition to individual gaskets, we offer a complete 6.7 Powerstroke turbo gasket kit, which includes all the essential gaskets for the 6.7 Powerstroke Turbo. This turbo gasket kit contains the Turbo Gasket (HC3Z-6587-A), Turbo Pedestal Gasket (BC3Z-6587-A), and a set of Turbo Exhaust Pipe Gaskets (BC3Z-6N640-A). With the 6.7 Powerstroke Turbo Gasket Kit, you save time and effort by getting all the necessary components in one package—no need to source each gasket separately.
What can also be in my 6.7 Powerstroke Turbo Gasket Kit? Add 6.7 Powerstroke intake manifold gaskets!
Enhance your 6.7 Powerstroke Turbo Gasket Kit with essential intake gaskets to optimize turbo efficiency and engine performance. The intake system supplies fresh air for compression, and a proper seal prevents boost leaks, ensuring maximum power and reliability.

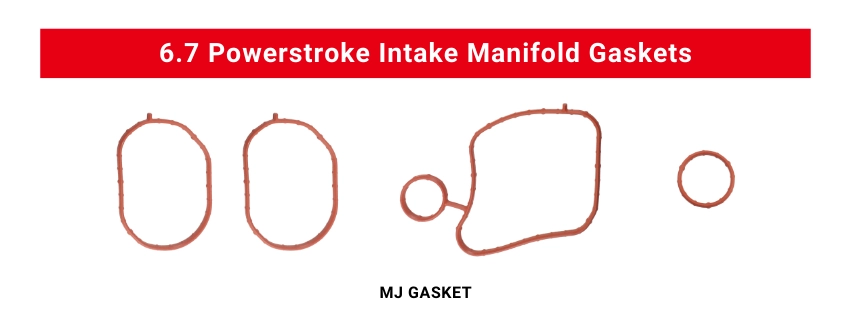

Included Intake Gaskets for the 6.7 Powerstroke:
- Upper Intake Manifold Gasket – BC3Z-9439-C
- Intake Manifold Gasket – BC3Z-9439-A
- Lower Intake Manifold Gasket – BC3Z-9439-B
Each gasket is made from high-quality rubber with sealing beads, ensuring a secure fit and preventing air leakage. By incorporating these intake gaskets into the 6.7 Powerstroke Turbo Gasket Kit, you streamline the sourcing process and achieve a complete, reliable sealing solution.
Get a Quote Today
The 6.7 Powerstroke turbo gasket is crucial for maintaining the performance and longevity of the turbo system. By ensuring secure seals with high-quality 6.7 Powerstroke turbo gasket kit components—including turbo, pedestal, exhaust pipe, and intake gaskets—you ensure secure seals and prevent costly leaks, keeping engine systems running smoothly.
Looking to source high-quality 6.7 Powerstroke turbo gasket kits?
Click on the items above and submit the form to request a quote for the 6.7 Powerstroke turbo gasket kit. Provide your customers with premium, reliable solutions that ensure long-lasting performance. Don’t compromise on quality—partner with us for top-tier gasket kits tailored to your business needs.
